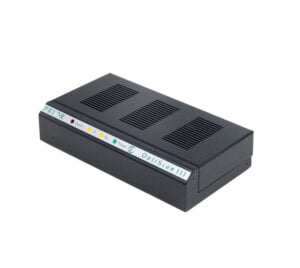

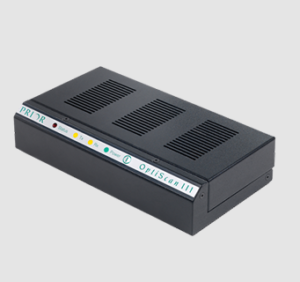

OptiScan III Controller


Affordable Controller for 3-axis Motorized Stage Systems

The OptiScan III ES11 controller is a reliable and affordable solution for automating routine imaging applications with fast, accurate movements.

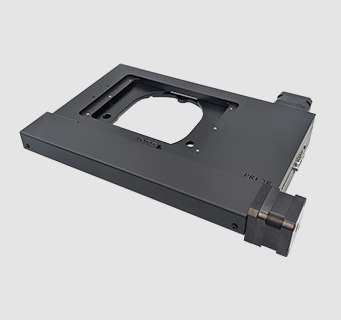

It enables users to easily combine and control XY stages and focusing mechanisms to facilitate routine motorized microscopy. The controller is plug-and-play to allow quick and easy setup and is most typically combined with Prior's ES111 stage and PS3H122R focus motor

It can also be combined with Prior's ProScan stages where larger travel ranges are needed but with lower precision movement. With a compact footprint, the ES11 is easily integrated into OEM devices.

The ES11 is compatible with many popular image analysis software packages, such as Nikon NIS Elements and Evident/Olympus PRECiV, Stream Motion and CellSens Dimension

For OEM customers and customized microscope builders, the OptiScan III is also provided with an open access software development kit (SDK).


    • Compact three-axis controller
    • Plug and play for easy setup of stages and focus drives
    • Compatible with many commercial imaging software suites
    • Ideal for entry-level motorized microscopy
Power Universal external power supply; Input 100-240V, 50/60Hz max 1.6A

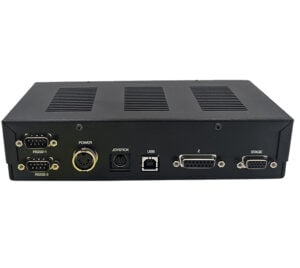

Communications Protocol USB, RS232C at 9600,19200 or 38400 baud, 8 bit word, 1 stop bit, no parity, no handshake
Travel Range Upright; 125 x 75mm, Inverted; 115 x 77mm
Repeatability ±5µm
Step Size (Resolution) 3mm ball bearings
Linear Slides 210 x 120 x 55mm
Drive Mechanism Anti backlash precision lead screw
Limit Switches X and Y standard, semi-adjustable

Specifications as per datasheet. Please see datasheet for details.

Option Manufacturer Compatibility Notes
