Electrophysiology Platform with XY Stepper Motor Stage

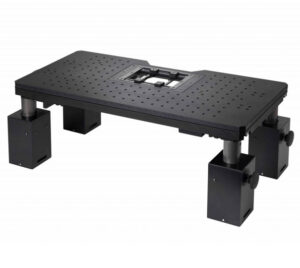

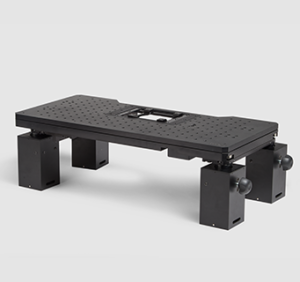

Prior high precision motorized Z Deck Quick Adjust Platform System complete with Prior Z Deck, motorized ProScan XY stage, ProScan III controller, CS200XY joystick , universal holder, solid aluminum plate, two micromanipulator mounts, condenser spacer and four 10mm pillar spacers. Prior Scientific’s patent pending Z Deck Quick Adjust Platform enables users to increase their productivity by allowing them to image multiple areas of interest with speed and precision.

Z Deck travel: 57mm
Vibration table compatibility: 1/4- 20 or 6mm
XY travel: 65mm x 65mm
XY resolution: 40 nanometers
Spacers provided: 1 condenser, 4 pillar spacers
ProScan controller power: Universal external power supply. Input 100-240V, 50/60Hz., Max 1.6A
ProScan computer interface: RS232/USB, 9600 baud
ProScan communication protocol: 8 bit word, 1 stop bit, no parity, no handshake
  • Increased productivity – image multiple areas of interest with speed and precision.
  • Z Deck lowers quickly and easily, providing easy access for loading and unloading samples.
  • No tools are required to adjust the height. Changing between thin sample and whole animal imaging height can be accomplished in seconds.
  • Pneumatic pistons in the Z Deck towers make raising and lowering the ZDeck virtually effortless.
  • Precision or customized ProScan stage provides sub-micron repeatability and smooth movement.
  • Compatible with 6mm or ¼-20 vibration isolation tables.
  • ProScan III controller and CS200XY joystick provide ultra fine XY stage controls.
  • Micromanipulator mounts – oversize ¼-20 plates on both sides.
  • Zero current for electrophysiology applications (ability to power the motors off after a stage movement)
  • Compatible with the BX51WI and BX61WI forward detector module.
  • Condenser spacer and pillar spacers provided to allow for Koehler illumination at a wide range of focus heights.
  • Optional encoded XY stage for highest precision available.
