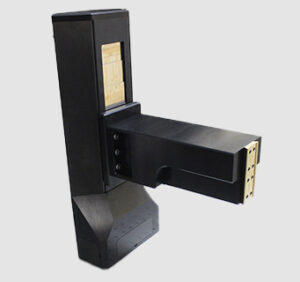

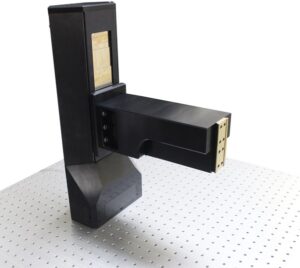

The H275LMT motorized focus column with 145mm of vertical travel is designed to provide fast, controlled movement of optical systems. The system’s high load capacity enables large and complex assemblies to be translated above the sample.

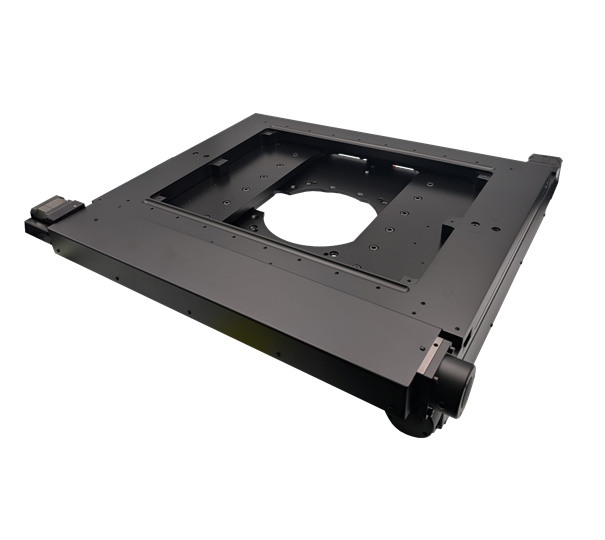

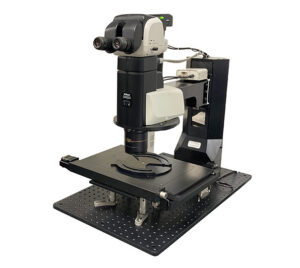

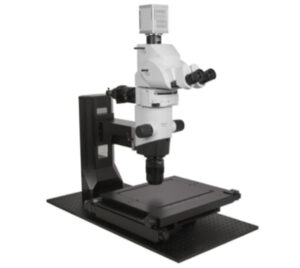

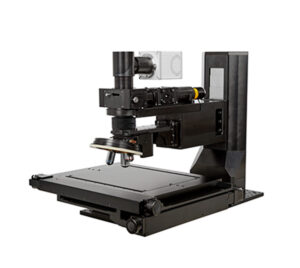

Designed with system development in mind, the interface between the optical system and the H275LMT is interchangeable. This enables the H275LMT to be widely compatible with highly customized optical systems, as well as commerically available stereo and compound microscope optics. The system can be further adapted to work with super long working distance objectives or very large or irregular samples. In combination with Prior’s complete OptiScan and ProScan motorized stage range, the H275LMT can be used to image samples as large as 300mm x 300mm. An optional linear encoder for enhanced long-range repeatability and closed loop step movements is also available.
