NanoScan OP800 piezo objective nanopositioning stage with 800 µm range for upright or inverted microscopy.

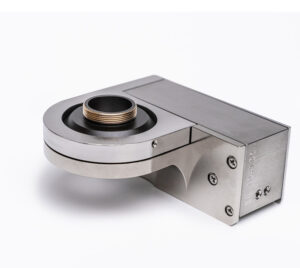

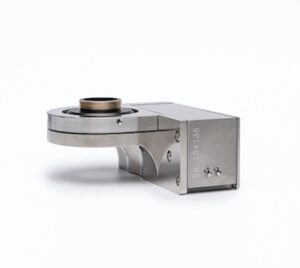

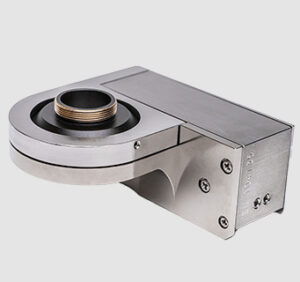

NanoScan OP800 Piezo Objective Scanner

Name: NanoScan OP800 Piezo Objective Scanner
Brand: Prior Scientific

Nanopositioning Stage With 800 µm Range for Upright Or Inverted Microscopy

The NanoScan OP800 piezo-driven objective positioner is compatible with most commercial and customized microscopes. The stage features an M32 objective thread as standard with a wide range of adapters available.

Settings for inverted or upright operation and load capacity are set during manufacture and can be further tuned in the field to optimize for specific applications.

The OP800 provides the fastest step and settle time of any piezo-driven objective positioner with a range of up to 800 µm. It features capacitive feedback sensors that ensure exceptional repeatability and resolution.

With its long travel range, it is especially suitable for whole organism, lightsheet, and multiphoton microscopy.

0-500 g load as standard: a high load version (up to 1000 g) is available.

Enquire

Data sheet

Stainless steel body providing greater mechanical stiffness for speed, load capacity and temperature stability
Flexure guided system with capacitive sensors provides high repeatability, exceptional linearity and faster cycle times
Connectors with built in stage calibration provide plug and play electronics
Tested to function for greater than 10 million full range cycles
800 µm travel range ideal for demanding microscopy applications

Range	800 µm
Position Noise	2.5 nm under 250g load
Repeatability	5 nm (Slow PID, 100 µm step, 1SD)
Linearity	0.01%
Step settle	17ms
Material	Aluminum/ Stainless Steel
Axis	Z
Thread	RMS, M25, W26, M27, M32
Load	0-500 g
Range	800 µm
Position Noise	2.5 nm under 250g load
Repeatability	5 nm (Slow PID, 100 µm step, 1SD)
Linearity	0.01%
Step settle	17ms
Material	Aluminum/ Stainless Steel
Axis	Z
Thread	RMS, M25, W26, M27, M32
Load	500-1000 g
