H189 High Precision XYZ Deck
Ultra Stable Platform for Electrophysiology and Whole-Animal Studies

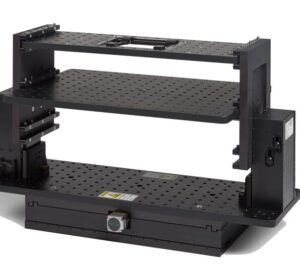

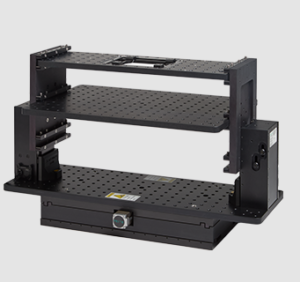

The H189 motorized XYZ deck provides an ultra-stable platform for electrophysiology applications.
It offers 50 mm of motorized X, Y, and Z travel and can cope with loads up to 25 kg, making it ideal for whole-animal studies as well as slides or petri dish samples.
The open design allows for easy access for micromanipulators, probes or other devices. The metric breadboard shelves are removable for easy sample preparation.

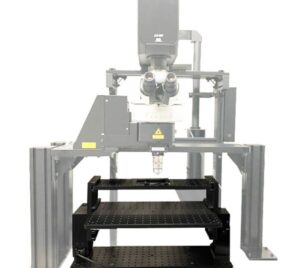

Compatible with the latest generation of 2P, 3P, multiphoton and confocal microscopy systems, the H189 is easy to integrate into existing equipment and works with many popular imaging software packages.
- Large removable metric breadboard for remote sample preparation
- Sample height adjustable from 79.5 mm to 410 mm
- 50 mm of motorized XY and Z travel
- Compatible with Queensgate Piezo Z models
- 25 kg weight capacity
| Lifting Capacity | 25 kg for Z axis; 100 kg XY stage capability |
|---|---|
| Motorized XY and Z Travel | 50 mm |
| Deck Plate Compatibility | 160 mm x 110 mm Prior Sample Holders |
| Sample Height Adjustment | 79.5 mm to 410 mm |
- H473UP Universal specimen holder (slides, Petri dishes and small flasks) for stereo microscopes
- H229UP Adjustable Petri dish holder (dish diameter up to 90 mm) for stereo microscopes
- H223UP Recessed holder for glass bottomed micro titre plates (85×128 mm) for stereo microscopes
- H224LP Low profile slide holder for one 76×26 mm microscope slide.
H189_Datasheet.pdf
| Option | Manufacturer | Compatibility | Notes |
|---|---|---|---|
| H189 | Nikon | AX-FNGP | |
| H189 | Evident/Olympus | FV4000 | Requires gantry microscope frame |
