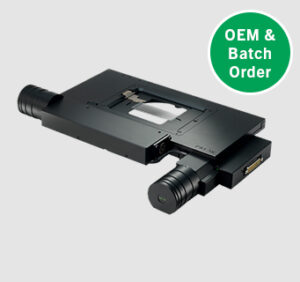

ProScan HEP4 Encoded Motorized XY Stage
High Resolution Stage For Upright Microscopes (114 mm x 75 mm)
The HEP4 is an encoded motorized XY stage for upright microscopes and is fully customizable for integration into OEM devices.
The most accurate and precise stage in the ProScan H101 range, it uses a 1 mm pitch ballscrew and 400 step motor drive configuration to provide four times the resolution of the H101A stage, making it ideal for applications that require reliable, short stage movements.
Linear encoders ensure long-range repeatability while Prior’s patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.
The HEP4 accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples. Alternative drive configuration options may be available depending on your region.
See the product compatibility tab for the full list of options available.
This is an ‘OEM & Batch Order’ product. For more information visit our FAQs section.
- Easy to integrate into customized imaging solutions
- 100 nm linear encoders for enhanced repeatability
- High step resolution and accuracy
- Wide range of sample holders
- Intelligent Scanning Technology™ (US Patent 7,330,307)
| Travel range | 114 mm x 75 mm |
|---|---|
| Unidirectional repeatability | < 0.4 µm |
| Bidirectional repeatability | < 1.1 µm |
| Metric accuracy | 0.09 µm/mm |
| Full travel metric accuracy | < 7.6 µm |
| Resolution | 0.1 µm |
| Squareness | < 35 arcsec |
| Maximum velocity | 15 mm/s |
| Maximum load | 10 kg |
| Encoders | 0.1 µm linear encoders |
| Motor type | 400 step |
| Screw pitch | 1 mm |
| Weight | 3.5 kg |
| Travel range | 114 mm x 75 mm |
| Unidirectional repeatability | < 0.5 µm |
| Bidirectional repeatability | < 1.2 µm |
| Metric accuracy | 0.09 µm/mm |
| Full travel metric accuracy | < 7.9 µm |
| Resolution | 0.1 µm |
| Squareness | < 35 arcsec |
| Maximum velocity | 30 mm/s |
| Maximum load | 10 kg |
| Encoders | 0.1 µm linear encoders |
| Motor type | 200 step |
| Screw pitch | 1 mm |
| Weight | 3.5 kg |
- H230 Aluminum plate.
- H220 Glass plate (not suitable for transmitted light microscopy).
- H473UP Universal specimen holder (slides, Petri dishes and small flasks) for stereo microscopes
- H649 Holder for a single 1 in, 1.25 in and 1.5 in mounted metallurgical specimen
- H224LP Low profile slide holder for one 76×26 mm microscope slide.
H1P4A-EN-Datasheet.pdf
HEP4A-REFERENCE-PART-NONAMES(1).zip
HEP4A-REFERENCE-IGES.zip
| Option | Manufacturer | Compatibility | Notes |
|---|---|---|---|
| HEP4 | Prior | OpenStand-U, OpenStand-M, OpenStand-L |
