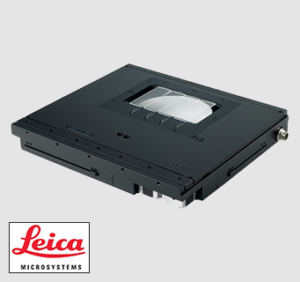

ProScan H101N2DM Motorized XY Stage
Flat Top High Speed Stage for Leica DM-series Upright Microscopes (114 mm x 75 mm)
The ProScan H101N2DM motorized XY stage is compatible with Leica upright microscopes.
It has a 2 mm ballscrew and 200-step motor for a balance of speed and resolution. Prior’s patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.
The H101N2DM accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples.
A slim profile with a completely flat top plate allows easy access to the sample for loading and compatibility with a wide range of optics.
See the product compatibility tab for the full list of options available.
- Compatible the Leica upright microscopes
- Excellent combination of speed and accuracy
- Aesthetic and user-friendly flat top design
- Intelligent Scanning Technology™ (US Patent 7,330,307)
| Max Travel Range | 114 mm x 75 mm |
|---|---|
| Unidirectional repeatability | <0.8 µm |
| Bidirectional repeatability | < 3.6 µm |
| Metric accuracy | 0.12 µm/mm |
| Full travel metric accuracy | < 12.0 µm |
| Resolution | 0.04 µm |
| Squareness | < 30 arcsec |
| Maximum velocity | 60 mm/s |
| Maximum load | 10 kg |
| Encoders | No |
| Motor type | 200 step |
| Screw pitch | 2 mm |
| Weight | 5 kg |
- H230F Aluminum insert plate for H101F stages
- H220F Glass insert plate for H101F stages
- H224F Single slide holder for new flat H101 stage
- H234F 4 X slide holder for new flat H101 stage
H101N2F-EN-Datasheet.pdf
| Option | Manufacturer | Compatibility | Notes |
|---|---|---|---|
| H101N2DM | Leica | DMLS, DMR, DM4000, DM5000, DM6000 |
