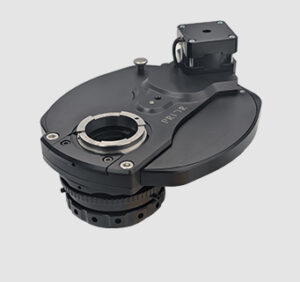

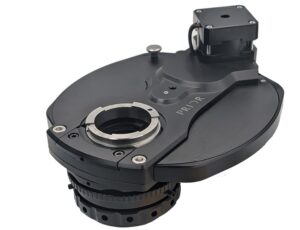

HF108B High-Speed Ultra-Thin Filter Wheel
8 Position Filter Wheel For Fluorescence Microscopy
The HF108B high-speed filter wheel holds up to eight 32 mm filters and allows users to simply and quickly tailor illumination to suit specific applications. The HF108B is ideal for high-speed widefield fluorescence microscopy or integration into confocal or super-resolution instruments.
The clear 29 mm aperture makes the HF108B an optimal choice for modern high field number microscopes and large-format cameras. For system integrators, numerous attachment points for customized adapters are available.
The HF108B offers a marked improvement in speed and durability compared to the previous HF108A model. It features an ultra-thin 21 mm body for easy integration and minimal impact on microscope infinity spaces, and includes an easy-to-use filter clamping mechanism.
The filter wheel is easily controlled through Prior’s ProScan III controller and can be ordered as a standalone system.
See the brand specific pages for more information on microscope compatibility:
- Lightweight design facilitates rapid filter changing
- Ultra-thin body minimizes impact on infinity space
- Non-threaded filter clamp enables easy filter installation
- Multiple attachment points for system integrators
- Life tested to 20 million cycles
| Weight | 1 kg |
|---|---|
| Mounting method | Without stand |
| Number of filters | 8 |
| Maximum filter diameter | 32 mm |
| Maximum filter thickness | 5 mm |
| Filter change time | < 38 ms |
| Wheel thickness | 21.1 mm |
| Maximum recommended drive current | 1200 mA |
- HF138C C-mount camera adapter
- HF138TFL TFL-mount camera adapter
- HF138F F-mount camera adapter
HF108B-EN-Datasheet.pdf
| Option | Manufacturer | Compatibility | Notes |
|---|---|---|---|
| HF108OS | Prior | OpenStand-U, OpenStand-M, OpenStand-L, OpenStand-V | Compatible when configured with correct OpenStand components. |
