Accurate & Precise Microscope Stage for Electronics Material Testing
06.10.16

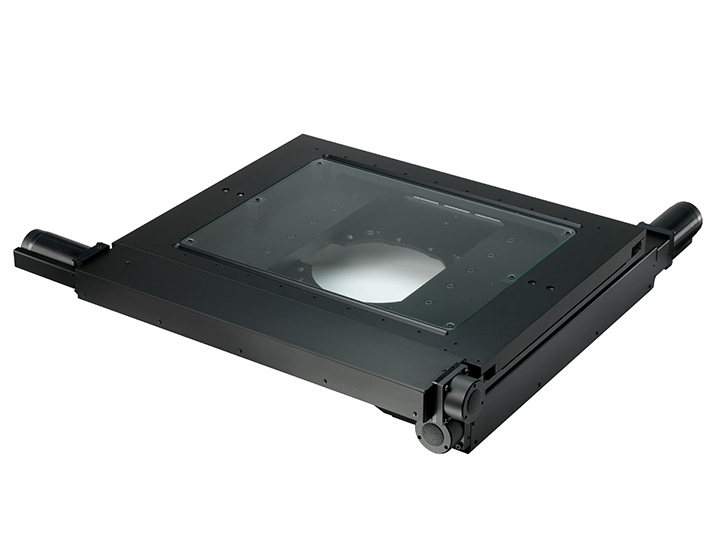

Fully compatible with a wide range of microscopes the H112 can easily accommodate wafers up to 12-inches (300 mm) in diameter, or samples up to 25kg in weight, and works with many robot arm wafer loaders. Furthermore, the large (250 x 250 mm) transmitted light area allows transmitted, as well as reflected, light applications to be performed.
The large area scanning capability of the H112 stage is exceptionally precise, with a minimum step size of 0.04 microns and a repeatability of +/-0.7 microns. The accuracy of the H112 stage, which is enhanced by Prior’s patented Intelligent Scanning Technology (IST), is unmatched. Precision can be further improved with the addition of 100 nm encoders for challenging applications requiring the very highest precision.
Prior Scientific microscope stages have a global reputation for top quality and high repeatability. Manufactured using the highest quality components – precision bearings, zero backlash recirculating ball screws, X and Y limit switches, two high precision stepper motors and a tough scratch-resistant coating – they provide trouble-free operation over extended periods of time.
