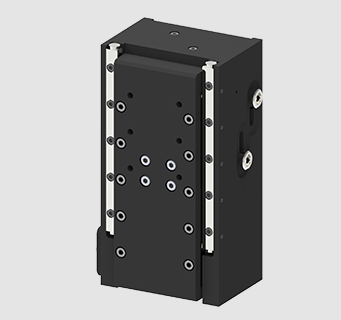

FB210E Encoded Motorized Linear Stage
Motorized Linear Actuator With 50 mm Extended Travel Range For Large Samples
The FB210E encoded motorized linear stage provides precise Z-axis positioning, and is designed for building customized optical systems for OEM manufacturing. The extended 50 mm travel range is suitable for working with large samples or complex experimental equipment.
It features a highly reliable stepper motor with linear encoders for sub-micron accuracy and exceptional long-range repeatability.
It is compatible with Prior’s motorized XY stages and has a load capacity of 14 kg for use with heavy samples or larger stages.
A synchronized, dual focus drive version of the FB210 is available for managing complex loads, as seen in the H189 Motorized XYZ Deck.
- Extended travel range for microscopy applications.
- High load capacity.
- Numerous mounting points.
- Sub-micron repeatability, enhanced by integrated linear encoders.
| Dimensions (at minimum range) | 177 x 155 x 143 mm |
|---|---|
| Resolution | 100 nm |
| Straightness (over full travel) | ± 4.6 µm |
| Full Travel Repeatability | ± 0.3 µm |
| Full Travel Metric Accuracy | < 6.5 µm |
| Travel Range | 50 mm |
| Speed Range (max load) | 1 – 14 mm/s |
| Max Load | 14 kg |
| Cable Length | 1 m |
Contact us for accessories information.
ZAxisMotorizedFocusMounts_FB210_FB212_EN_Datasheet.pdf
Contact us for compatibility information.
