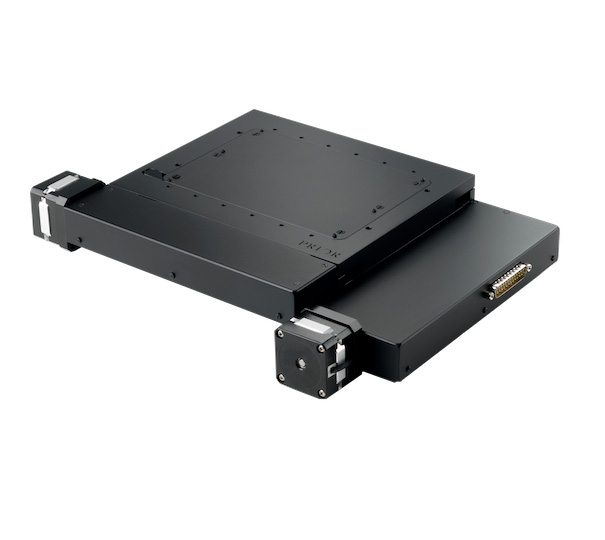

ProScan HT1111LC Motorized XY Stage
Heavy Duty Hardness Testing Motorized Industrial Stage (108 mm x 108 mm travel)
The HT1111LC industrial hardness testing XY stage can withstand point loads of up to 100 kg without compromising its positioning performance.
This high load capacity makes it well suited to other heavy-duty industrial applications or as a microscope translation stage. It forms the base of the HT11 Series Heavy Duty Stages for Whole Animal and Industrial Imaging.
The HT1111LC uses Prior’s patented Intelligent Scanning Technology (IST) to optimize stage accuracy and linearity under challenging load conditions.
- Supports up to 100 kg mass or point load
- Intelligent Scanning Technology™ (US Patent 7,330,307)
- Full DLL/SDK available for use with OEM software integration
- Tough, scratch resistant coating
| Unidirectional repeatability | < 0.6 μm |
|---|---|
| Bidirectional repeatability | < 2.5 μm |
| Metric accuracy | < 0.16 μm/mm |
| Full travel metric accuracy | <16.0 μm |
| Resolution | 0.02 µm |
| Squareness | < 40 arcsec |
| Maximum velocity | 30 mm/s |
| Maximum load | 100 kg |
| Encoders | No |
| Motor type | 400 step |
| Screw pitch | 2 mm |
| Weight | 5 kg |
Contact us for accessories information.
HT1111LC-EN-Datasheet.pdf
HT1111LC-REFERENCE-PART-NONAMES.zip
HT1111LC-REFERENCE-IGES.zip
Contact us for compatibility information.
