H275LMTE Extended Travel Encoded Motorized Focus Tower
Focus Column with 145 mm Vertical Travel For Imaging Large Samples
The H275LMTE encoded motorized focus column provides fast, controlled movement of optical systems with up to 145 mm of vertical travel.
It features embedded linear encoders for enhanced long-range repeatability.
The interface between the optical system and the H275LMTE is interchangeable, making it compatible with commercially available stereo and compound microscope optics and for developing customized optical systems.

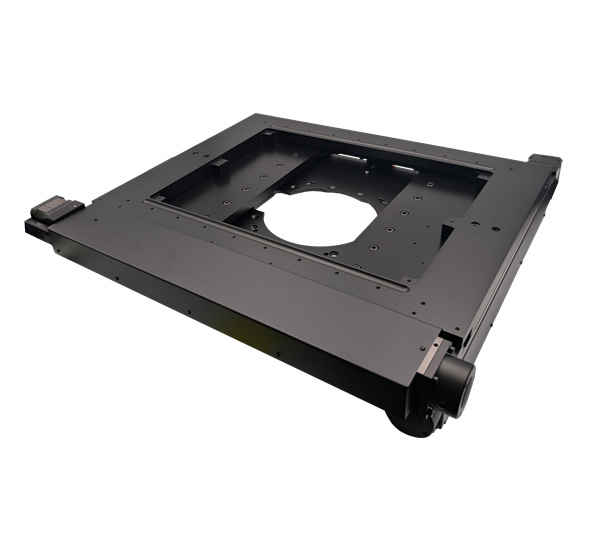

In combination with Prior’s complete OptiScan and ProScan motorized stage range, the H275LMTE can be used to image large samples (up to 300 mm x 300 mm).
The system’s high load capacity of 25 kg enables large and complex assemblies to be translated above the sample.
- High-resolution focus movement
- Linear encoder for enhanced long-range repeatability and closed-loop step movements
- Mounts directly to 6mm or 1/4-20 breadboards
- Highly customizable to work with large or irregular samples
| Travel range / Closed Loop Range | 145 mm |
|---|---|
| Resolution | 0.1 µm |
| Encoder | 0.1 µm |
| Microscope Brand | Nikon |
- H275LMVX Large Format Openstand MVX Adaptor
- H275LSMZ Large Format Openstand SMZ Adaptor
- H275LH Large Format Openstand Microscope Head
- HH531 Stage Mounting Kit, H275LMT
H275LMT_EN_Datasheet.pdf
Nikon-EN-US-Sales-Guide.pdf
Evident-Olympus-EN-US-Sales-Guide.pdf
H275LMT_LargeFormatOpenstandMotorisedTower.STEP
| Option | Manufacturer | Compatibility | Notes |
|---|---|---|---|
| H275LMTE+ H275LMVX | Evident/Olympus | MVX10, SZX10, SZX16 | |
| H275LMTE+ H275LSMZ | Nikon | SMZ18, SMZ25 | |
| H275LMTE+ H275LH | Prior | OpenStand-L | Includes 20mm linear encoded fine focus drive. |
| H275LMTE+ H275LHE | Prior | OpenStand-L | Includes 20mm linear encoded fine focus drive. |
