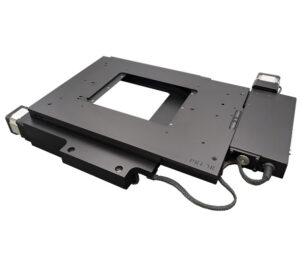

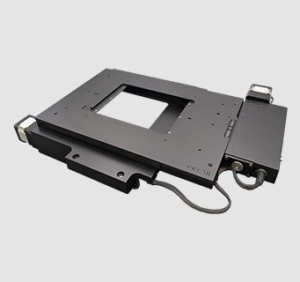

ProScan H117P1N4 Motorized XY Stage
High Performance XY Stage For Inverted Microscopes (114 mm x 75 mm)
The ProScan H117P1N4 motorized XY stage is compatible with Nikon inverted microscopes and Prior’s OpenStand-V imaging platform.
It uses a 1 mm ballscrew, 400-step motor drive configuration for high-resolution movements. This makes the H117P1N4 a good choice for experiments that require precise movements and high stability in one position, such as well plate scanning or time-lapse imaging.
Prior’s patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.
A flat top plate allows easy access to the sample for loading, compatibility with many stage-top incubation systems, and enables the use of peripheral equipment around the sample for complex imaging operations.
The H117P1N4 is compatible with Nikon NIS elements software (appropriate package required).
See the product compatibility tab for the full list of options available.
- Directly compatible with Nikon inverted microscopes and software
- Flat top design facilitates easy sample loading
- Compatible with NanoScan SP series piezo stages, stage top incubators and other peripheral equipment
- Default stage configuration optimized for resolution and repeatability
- Intelligent Scanning Technology™ (US Patent 7,330,307)
| Travel range | 114 mm x 75 mm |
|---|---|
| Unidirectional repeatability | < 0.7 µm |
| Bidirectional repeatability | < 2.2 µm |
| Metric accuracy | 0.17 µm/mm |
| Full travel metric accuracy | < 17.0 µm |
| Resolution | 0.01 µm |
| Squareness | < 40 arcsec |
| Maximum velocity | 15 mm/s |
| Maximum load | 10 kg |
| Encoders | No |
| Motor type | 400 step |
| Screw pitch | 1 mm |
| Weight | 5 kg |
- H223XRNC Extra recessed holder for micro titre plates (85×128 mm) with diagonal corner sections removed
- H229XR Adjustable Petri dish holder, dish diameter up to 90 mm
- H473XR Universal specimen holder, extra recessed, for slides & Petri dishes
- H234XR Low profile slide holder, recessed, for four 76×26 mm microscope slides
- H224XRLP Low profile slide holder, extra recessed, for one 76 x 26 mm microscope slide
H117P1N4-EN-Datasheet.pdf
Nikon-EN-US-Sales-Guide.pdf
H117P1N4_REFERENCE-IGES.zip
H117P1N4_REFERENCE-PART-NONAMES.zip
| Option | Manufacturer | Compatibility | Notes |
|---|---|---|---|
| H117P1N4 | Nikon | Ti-U, Ti-E, Ti2-A, Ti2-U, Ti2-E, Ts2R | |
| H117P1N4 | Nikon | TE2000 | Requires non-motorized filter turret – contact Prior |
| H117P1N4 | Prior | OpenStand-V |
