High Performance Stage for Nikon MA200 Inverted Microscope

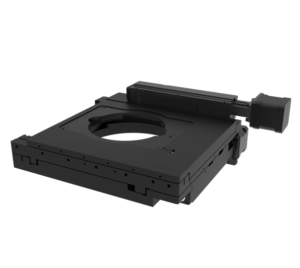

ProScan H117N1M4 Motorized XY Stage

Name: ProScan H117N1M4 Motorized XY Stage
Brand: Prior Scientific

High Performance Stage for Nikon MA200 Inverted Microscope (114 mm x 75 mm travel)

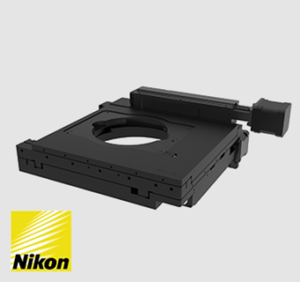

The ProScan H117N1M4 motorized XY stage is compatible with the Nikon MA200 inverted microscope.

It uses a 1 mm ballscrew, 400-step motor drive configuration to provide high step resolution. This makes the H117N1M4 a good choice for stitching large images of industrial samples at high magnification, and precisely positioning features of interest at the center of the field of view.

The H117E1M4 encoded version is also available which uses linear encoders for exceptional long-range repeatability, making it an ideal stage for precisely scanning and even measuring large industrial samples.

Prior's patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.

The stage features a mounting position for circular Nikon sample mounts and is designed to be compact to match the design of the MA200 frame.

The H117E1M4 is compatible with Nikon NIS Elements software (appropriate package required).

See the product compatibility tab for the full list of options available.

Enquire Now

Data Sheet

Directly compatible with Nikon MA200 and software
Flat top design facilitates easy sample loading
Default stage configuration optimized for resolution and repeatability
Intelligent Scanning Technology™ (US Patent 7,330,307)

Specification	H117N1M4	H117E1M4
Travel range	114 mm x 75 mm	114 mm x 75 mm
Unidirectional repeatability	< 0.6 µm	< 0.6 µm
Bidirectional repeatability	< 2.3 µm	< 2.0 µm
Metric accuracy	0.1 µm/mm	0.1 µm/mm
Full travel metric accuracy	< 7.6 µm	< 7.6 µm
Resolution	0.01 µm	0.1 µm
Squareness	< 35 arcsec	< 30 arcsec
Maximum speed	15 mm/s	15 mm/s
Maximum load	10 kg	10 kg
Encoders	No	0.1 µm linear encoders
Motor type	400 step	400 step
Screw pitch	1 mm	1 mm
Weight	5 kg	5 kg
