Encoded Motorized Z Deck Electrophysiology Platform
Ultra-stable Platform With XY Stepper Motor Stage

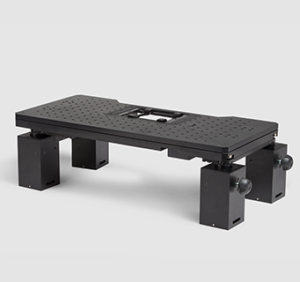

The encoded Z Deck Quick Adjust Platform, with motorized XY stage, enables users to automatically image multiple areas of interest with speed and precision, and enhance productivity in electrophysiology applications.
Featuring linear encoders for exceptional long-range repeatibility, it provides closed-loop control, enabling even very small sample features to be relocated to the center of the microscope field of view with ease.
The ultra-stable platform allows full access for micromanipulation and the height is quickly and easily adjusted for use with different sample sizes from thin samples to whole animal imaging.
The large stage top plate has a breadboard pattern for mounting experiment accessories, and an aperture compatible with a wide range of sample holders.
For experiments requiring the minimum of electrical noise, the manual Z Deck is available.
This platform is compatible with a range of upright microscopes from the main manufacturers. See the product compatibility tab for details.
- Motorized XY stage with encoders ensures excellent repeatability
- Change between thin sample and whole animal imaging height in seconds
- Easy access for mounting additional micromanipulators and stereotaxic instruments
- Large sample area for mounting heating, cooling, perfusion, or incubation chambers
- Compatible with most microscope brands
| XY Resolution | 40 nm |
|---|---|
| Z Deck Travel | 57 mm |
| Vibration Table Compatibility | 1/4-20 or 6 mm |
| XY Travel | 65 mm x 65 mm |
| XY Speed | 15 mm/s |
| Spacers Provided | 4 pillar spacers, 4 x 1 inch spacers |
| ProScan Controller Power | Universal external power supply. Input 100-240V, 50/60Hz., Max 1.6A |
| ProScan Computer Interface | RS232/USB |
| ProScan Communication Protocol | 8 bit word, 1 stop bit, no parity, no handshake |
- HZ201 Adapter insert Plate allowing any standard insert to be attached
- HZ202 Solid insert plate
- HZ203 Nikon 108mm ring insert plate
- HZ204 Olympus 110mm ring insert plate
ZDeck_Motorized_Datasheet.pdf
ZDZ12MP-REFERENCE-PART-IGES.zip
ZDZ12MP-REFERENCE-PART-NONAMES.zip
Nikon-EN-US-Sales-Guide.pdf
Evident-Olympus-EN-US-Sales-Guide.pdf
| Option | Manufacturer | Compatibility | Notes |
|---|---|---|---|
| ZDZ12ME | Zeiss | Axio Examiner | |
| ZDN12ME | Nikon | FN1, Ni-E (focusing nosepiece) | |
| ZDP12ME | Evident/Olympus | BX51WI, BX61WI | |
| ZDL12ME | Leica | DM6 FS |
