ProScan HT11 Series Motorized XY Stage

Name: ProScan HT11 Series Motorized XY Stage
Brand: Prior Scientific

Heavy Duty Motorized Stages for Whole Animal and Industrial Imaging

The HT11 Series is ideal for automated XY scanning of larger samples and is underpinned by the technology from Prior's hardness testing stages.

The HT11300KT and HT11600KT have surface areas of 300 x 300 mm and 600 x 600 mm respectively, with both capable of supporting loads of up to 100 kg to enable large and complex equipment to be translated.

This includes both whole animal behavioral electrophysiology apparatus and customized industrial assemblies.

The HT11 Series surfaces feature an M6 tapped breadboard pattern for easy attachment, and can also be fixed directly to M6 or ¼-20 breadboards.

Finally, the stages use Prior’s patented Intelligent Scanning Technology (IST) to optimize stage accuracy, linearity and other performance characteristics.

Enquire Now

Data Sheet

Load capacity of up to 100 kg
Intelligent Scanning Technology™ (US Patent 7,330,307)
Mounts directly to 1/4-20 and M6 breadboards

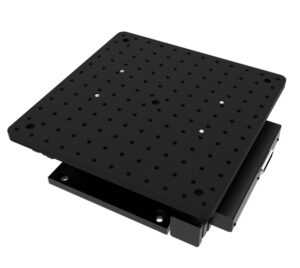

Heavy duty translation stage with 300 x 300 mm or 600 x 600 mm M6 tapped breadboard top plate.
Directly compatible with live animal neuroscience equipment, including the Neurotar Mobile HomeCage Large

Travel range	108 mm x 108 mm
Unidirectional repeatability	<0.6 µm
Bidirectional repeatability	<2.5 µm
Metric accuracy	0.16 µm/mm
Full travel accuracy	<16.0 µm
Resolution	0.02 µm
Squareness	<40 arcsec
Maximum velocity	30 mm/s
Maximum load	100 kg
Encoders	No
Motor type	400 step
Screw pitch	2 mm
Weight	9.5 kg
Surface area	300 x 300 mm
Travel range	108 mm x 108 mm
Unidirectional repeatability	<0.6 µm
Bidirectional repeatability	<2.5 µm
Metric accuracy	0.16 µm/mm
Full travel accuracy	<16.0 µm
Resolution	0.02 µm
Squareness	<40 arcsec
Maximum velocity	30 mm/s
Maximum load	100 kg
Encoders	No
Motor type	400 step
Screw pitch	2 mm
Weight	15.0 kg
Surface area	600 x 600 mm
