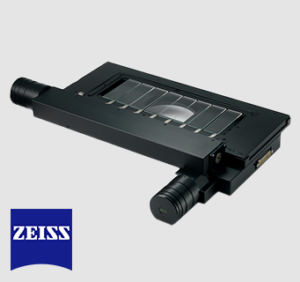

ProScan H138AXIM Motorized XY Stage
Automated Stage With 8 Slide Capacity For Zeiss Axio Imager Microscopes (240 mm x 71 mm)
The H138AXIM is a motorized XY stage adapted for Zeiss Axio Imager microscopes.
It uses a 2 mm pitch ballscrew and 200-step motor drive to cover its large travel area quickly, and features Prior’s patented Intelligent Scanning Technology (IST) to optimize stage accuracy and linearity.
The H138AXIM fits up to eight 75 mm x 25 mm microscope slides and offers extended lateral travel for imaging large samples, such as PCBs, or arrays of multiple samples.
See the product compatibility tab for the full list of options available.
- Adapted for Zeiss microscopes and fully customizable for use in OEM projects
- 1µm or better repeatability
- Extended lateral travel for imaging larger samples or multiple slides
- Wide range of sample holders
- H288 Glass plate (not suitable for transmitted light microscopy).
- H239 Aluminum plate (H138)
- H238LP Low profile slide holder for eight 76×26 mm Microscope Slides.
H138A_REFERENCE-IGES.zip
H138A_REFERENCE-PART-NONAMES.zip
H138A_Datasheet.pdf
| Option | Manufacturer | Compatibility | Notes |
|---|---|---|---|
| H138AXIM | Zeiss | Axio Examiner, Axioimager 1, Axioimager 2 |
