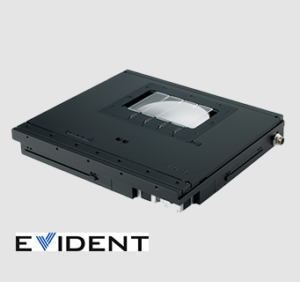

ProScan H101E2B3 (Evident) Encoded Motorized XY Stage
Flat Top High Speed Stage for Evident/Olympus BX63 Upright Microscopes (114 mm x 75 mm)
The ProScan H101E2B3 motorized XY stage is adapted for use with Evident/Olympus upright microscopes.
It has a 2 mm ballscrew and 200-step motor for a balance of speed and resolution, together with linear encoders for exceptional long-range repeatability. Prior’s patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.
The H101E2B3 accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples.
A slim profile with a completely flat top plate allows easy access to the sample for loading and compatibility with a wide range of optics.
This stage is compatible with Evident/Olympus CellSens Dimension, Stream Motion and PRECiV software (appropriate package required).
See the product compatibility tab for the full list of options available.
- Optimal stage mounting arrangement for BX63
- 100 nm linear encoders for enhanced repeatability
- Excellent combination of speed and accuracy
- Aesthetic and user-friendly flat top design
- Intelligent Scanning Technology™ (US Patent 7,330,307)
- H230F Aluminum insert plate for H101F stages
- H220F Glass insert plate for H101F stages
- H224F Single slide holder for new flat H101 stage
- H234F 4 X slide holder for new flat H101 stage
H101N2F-EN-Datasheet.pdf
Evident-Olympus-EN-US-Sales-Guide.pdf
| Option | Manufacturer | Compatibility | Notes |
|---|---|---|---|
| H101E2B3 | Evident/Olympus | BX63 |
