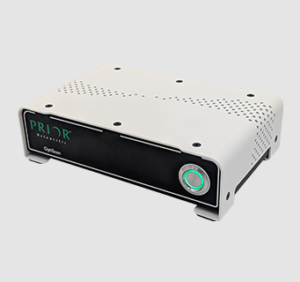

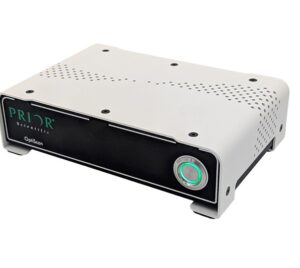

ES12ZETTL Controller

Single Axis Stepper Motor Controller With TTL I/O

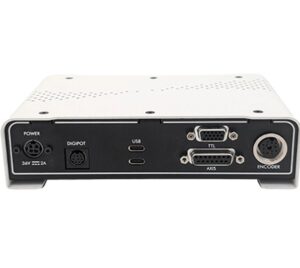

The ES12ZETTL is a single axis controller with encoder input, 10 TTL inputs and 5 TTL outputs, enabling precise motion control and synchronized hardware operation. It is a cost-efficient controller that delivers fast, accurate, and repeatable motion performance.

Designed for both software and hardware interfacing, it can be used with motorized Z-axis drives, rotary multi position devices, and other stepper-driven components, while also triggering external equipment such as cameras used for image acquisition.

The ES12ZETTL adds a single high-performance stepper axis to new or existing systems, for example integrating a filter wheel into a microscope, incorporating a motorized nosepiece into an OEM system, or enabling precise focus control through a motorized Z-axis.

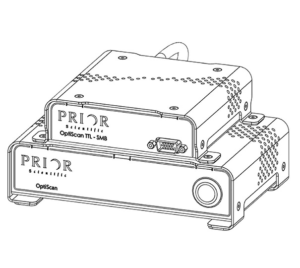

An optional ES12ADTTL module is available to convert the high density TTL port into SMB connectors, offering greater flexibility in system connectivity.

The unit is available in both bench-top and OEM casework options for different applications and an open-access SDK is also provided.

Compatible with NIS Elements, CellSens Dimension, Stream Motion, PRECiV, and Micromanager.
