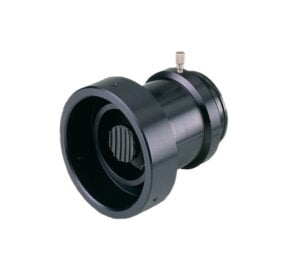

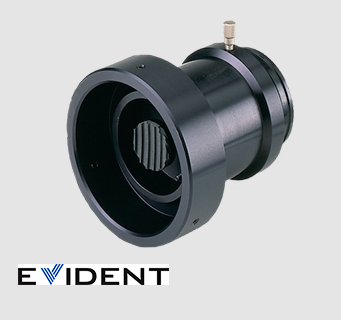

PS3H122R (Evident/Olympus)


Bolt-On Motorized Focus Drive For Evident/Olympus Microscopes

Prior's PS3H122R bolt-on motorized focus drive is compatible with manual Evident/Olympus microscopes. See the product compatibility tab for details.

The unit clamps directly to the coarse focus knob and assumes control over the fine focus, having sufficient resolution to maintain the step resolution of the manual focus drive it is attached to.

Installation is simple and does not require the microscope body to be inverted or disassembled. Simply clamp the PS3H122R onto the focus drive and push it onto the fine focus knob. Additionally, some microscopes allow the PS3H122R to be directly coupled to the fine focus drive, enhancing repeatability.

Compatible with Prior's 3-axis OptiScan® and ProScan® controllers, and single-axis ES10ZE, the PS3H122R represents a simple method of enabling automated Z-stacking, extended focus and autofocus operations on manual microscopes.

The PS3H122R is compatible with Evident/Olympus CellSens, PRECiV, and Stream software (appropriate package required).


    • No twist cable connection
    • 0.002 µm minimum step size ensures microscope fine focus resolution is retained
    • Easy to install, no microscope disassembly required
    • Adaptable to numerous current and older generation Evident/Olympus microscopes
    • Compatible with Prior OptiScan and ProScan controllers

Specifications as per datasheet. Please see datasheet for details.

Option Manufacturer Compatibility Notes

PS3H122R

+ H807

+ H122KBIX

Evident/Olympus BX51, BX53, BX53M, IX71, IX73, MX61, MX61L, MX63, MX63L Direct Coupling
PS3H122SZX Evident/Olympus SZX7, SZX9, SZX12
PS3H122SZX2 Evident/Olympus SZX10, SZX16
PS3H122OLM Evident/Olympus IX81, BX61
