ProScan HLD117NN

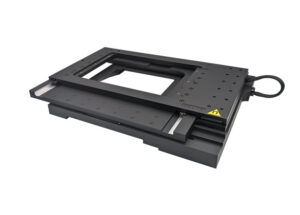

Linear Motor Ultra-precision Stage for Nikon Inverted Microscopes

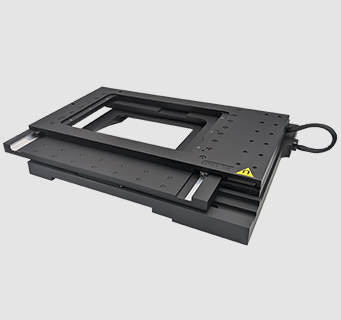

The HLD117NN linear motor stage is adapted for Nikon inverted research microscopes. It is also can be used for OEM devices and customized research applications.

It is the most accurate and repeatable stage Prior offers providing controlled constant velocity for continuous motion scanning or stitch mosaicing. It is suitable for long-term time-lapse imaging, high-content screening (with Prior's PLW20 well-plate loader), and point-to-point imaging.

The HLD117NN uses low-friction linear drives for exceptional acceleration and deceleration, and operates at higher speeds than stepper motor stages while also being almost silent during operation. It features 50 nm linear encoders for enhanced long-range accuracy and linearity

Its flat top plate allows easy access to the sample for loading and ensures compatibility with a wide range of optics.

This stage is compatible with Nikon NIS Elements software (appropriate package required).


    • Highest speed, resolution and repeatability of any non-piezo Prior stage
    • Ultra quiet and smooth operation even at high speeds of up to 300 mm/s
    • Directly compatible with Nikon Ti and Ti2 microscopes and software
    • Directly compatible with NanoScan SP series piezo stages and PLW20 wellplate loader
    • Flat top design for ease of sample loading
Travel Range 121 x 81 mm
XY Repeatibility 0.15 µm
Minimum Step Size 0.05 µm
Metric Accuracy 0.045 μm
Minimum Velocity 1 μm/s
Maximum Velocity 300 mm/s
Squareness 20 arc/second
Motors High precision linear DC servo
Weight 7 kg
Maximum Load Capacity 6 kg
  • H223XRNC Extra recessed holder for micro titre plates (85x128 mm) with diagonal corner sections removed

  • H229XR Adjustable Petri dish holder, dish diameter up to 90 mm

  • H473XR Universal specimen holder, extra recessed, for slides & Petri dishes

  • H234XR Low profile slide holder, recessed, for four 76x26 mm microscope slides

  • HLD324 Insert Adapter for HLD117NN

Option Manufacturer Compatibility Notes
HLD117NN Nikon Ti-U, Ti-E, Ti2-U, Ti2-A, Ti2-E
