ProScan HE38BX

Encoded Motorized Stage With 8 Slide Capacity For Evident BX and SZX Microscopes

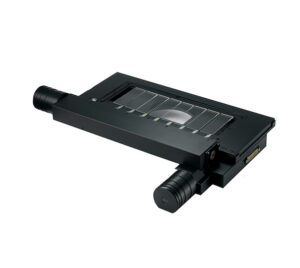

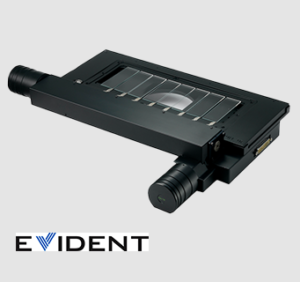

The HE38BX is an encoded, motorized XY stage adapted for Evident/Olympus upright microscopes.

It uses a 2 mm pitch ballscrew and 200-step motor drive to cover its large travel area quickly, and features Prior's patented Intelligent Scanning Technology (IST) to optimize stage accuracy and linearity. Long-range repeatability is also enhanced by linear encoders providing closed-loop positioning.

The HE38BX fits up to eight 75 mm x 25 mm microscope slides and offers extended lateral travel for imaging large samples, such as PCBs, or arrays of multiple samples.

This stage is compatible with Evident/Olympus CellSens Dimension, Stream Motion and PRECiV software (appropriate package required).

See the product compatibility tab for the full list of options available.

Enquire Now

Data Sheet

Adapted for Evident microscopes and fully customizable for use in OEM projects
1µm or better repeatability
Extended lateral travel for imaging larger samples or multiple slides
Linear encoders for closed loop positional control

Maximum Travel Range	240 x 71 mm
Minimum Step Size	0.02 µm
XY Repeatability	± 1.0 µm
Load Capacity	10 kg
Stepper Motor	2 phase bipolar, 1 amp per phase, micro stepping
Linear Slides	3 mm precision bearings
Drive Screws	Zero backlash, recirculating ballscrews, 2 mm pitch
Encoders	0.1 µm resolution
