Encoded Motorized 8-inch Travel Stage For Evident/Olympus MX Industrial Microscopes

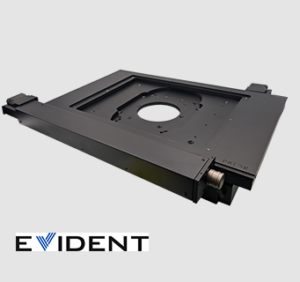

The ProScan HE16/2OL encoded motorized XY stage is adapted for Evident/Olympus MX industrial microscopes.
It has a long travel range and 25 kg load capacity for scanning large, heavy samples such as 8-inch semiconductor wafers, flat panel displays and printed circuit boards up to 200 mm diameter.
The HE16/2OL has linear encoders for exceptional long-range repeatability and a 2 mm ballscrew for a balance of speed and resolution. Prior's patented Intelligent Scanning Technology (IST) to enhance accuracy and linearity. It scans large industrial samples reliably and efficiently.
Other drive configurations for increased speed may be available depending on your region.
It is compatible with transmitted light applications and provides easy access for loading samples.
This stage is compatible with Olympus Stream Motion and Evident PRECiV software (appropriate package required).
