ProScan H1P4A

Motorized High Resolution Stage For Upright Microscopes

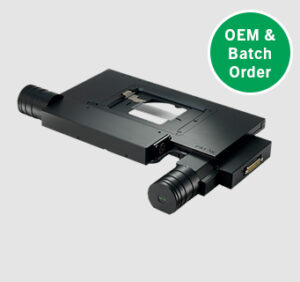

The H1P4A is a motorized XY stage for upright microscopes and is fully customizable for integration into OEM devices.

The most accurate and precise stage in the ProScan H101 range, it uses a 1 mm pitch ballscrew and 400 step motor drive configuration to provide four times the resolution of the H101A stage, making it ideal for applications that require reliable, short stage movements. Prior's patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.

The H1P4A accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples. Alternative drive configuration options may be available depending on your region.

See the product compatibility tab for the full list of options available.

Enquire Now

Data Sheet

Compatible with most brands of upright microscopes and fully customizable for use in OEM projects
High step resolution
Quiet and reliable
Wide range of sample holders
Intelligent Scanning Technology™ (US Patent 7,330,307)

Product Code	H1P4A	H1P1A
Max travel range	114 mm x 75 mm	114 mm x 75 mm
Minimum Step Size	0.01 µm	0.01 µm
XY Repeatability	0.7 µm	0.7 µm
Load Capacity	10 kg	10 kg
Stepper Motor	2 phase bipolar, 1 amp per phase micro stepping	2 phase bipolar, 1 amp per phase micro stepping
Linear Slides	3 mm precision bearings	3 mm precision bearings
Drive screws	Zero backlash, recirculating ball screws; 1 mm pitch	Zero backlash, recirculating ball screws; 1 mm pitch
Stepper Motor type	400 step	200 step

Specifications as per datasheet. Please see datasheet for details.

H230 Aluminum plate.
H220 Glass plate (not suitable for transmitted light microscopy).
H473UP Universal specimen holder (slides, Petri dishes and small flasks) for stereo microscopes
H649 Holder for a single 1 in, 1.25 in and 1.5 in mounted metallurgical specimen
H224LP Low profile slide holder for one 76x26 mm microscope slide.
