ProScan H117P1D4


Motorized High Performance Stage for Leica DMI-series Microscopes

The ProScan H117P1D4 motorized XY stage is compatible with Leica inverted microscopes

It uses a 1 mm ballscrew and 400-step motor drive configuration for high-resolution movements. The H117P1D4 is a good choice for experiments that require precise movements and high stability in one position, such as well plate scanning or time-lapse imaging.

Prior's patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.

A flat top plate allows easy access to the sample for loading, compatibility with many stage-top incubation systems, and enables the use of peripheral equipment around the sample for complex imaging operations

See the product compatibility tab for the full list of options available.


    • Directly compatible with Leica inverted microscopes
    • Flat top design facilitates easy sample loading

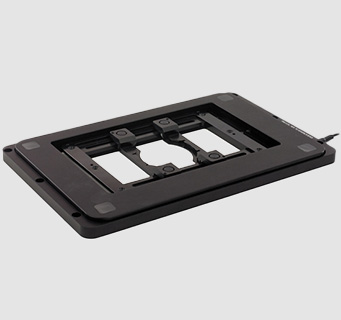

    • Compatible with NanoScan SP series piezo stages, stage top incubators and other peripheral equipment
    • Default stage configuration optimized for resolution and repeatability
    • Intelligent Scanning Technology™ (US Patent 7,330,307)
Mean Uni-Directional Repeatability 0.2 µm
Resolution 0.01 µm
Suggested Max Speed 15 mm/s
Average Metric Accuracy 0.059 µm/mm
Maximum Travel Range 114 mm x 75 mm
Maximum Load Capacity 10 kg
Squareness (arc seconds) 30
Ballscrew Pitch 1 mm
Motor Type 400 SPR
Encoders No

Specifications as per datasheet. Please see datasheet for details.
