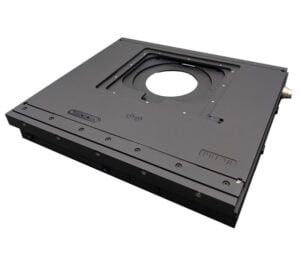

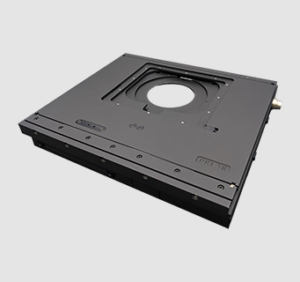

ProScan H101N2F


Motorized Flat Top High Speed Stage for Upright Microscopy

The ProScan H101N2F is a motorized XY stage for upright microscopes and is fully customizable for integration into OEM devices.

It has a 2 mm ballscrew and 200-step motor for a balance of speed and resolution. Prior's patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.

The H101N2F accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples.

A slim profile with a completely flat top plate allows easy access to the sample for loading and compatibility with a wide range of optics.

See the product compatibility tab for the full list of options available.


    • Easy to integrate into customized imaging solutions
    • Excellent combination of speed and accuracy
    • Aesthetic and user-friendly flat top design
    • Intelligent Scanning Technology™ (US Patent 7,330,307)
Travel range 114 mm x 75 mm
Unidirectional repeatability < 0.8 μm
Bidirectional repeatability < 3.6 μm
Metric accuracy 0.12 μm/mm
Full travel metric accuracy < 12.0 μm
Resolution 0.04 µm
Squareness < 30 arcsec
Maximum velocity 60 mm/s
Maximum load 10 kg
Encoders No
Motor type 200 step
Screw pitch 2 mm
Weight 5 kg

Specifications as per datasheet. Please see datasheet for details.

  • H230F Aluminum insert plate for H101F stages

  • H220F Glass insert plate for H101F stages

  • H224F Single slide holder for new flat H101 stage

  • H234F 4 X slide holder for new flat H101 stage

Option Manufacturer Compatibility Notes

H101N2F

Prior OpenStand-U, OpenStand-M, OpenStand-L
