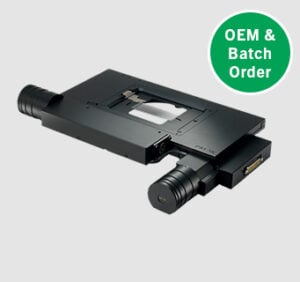

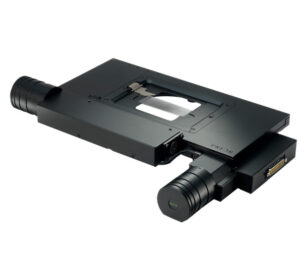

ProScan H101A

Motorized Microscope Stage For Upright Microscopes

The ProScan H101A is a motorized XY stage for upright microscopes and is fully customizable. Its compact design makes it ideal for integration into OEM devices or customized microscopes.

It has a 2 mm ballscrew and 200-step motor for a balance of speed and resolution, offering sub-micron repeatability while also providing 4 times the speed of the H1P4A stage. Prior's patented Intelligent Scanning Technology (IST) optimizes stage accuracy and linearity.

The H101A accommodates a variety of specimen types including glass slides, multiwell plates, semiconductor wafers, and metallurgical samples.

Enquire Now

Data Sheet

Compatible with most brands of upright microscopes and fully customizable for use in OEM projects
1µm or better repeatability
Quiet and reliable
Wide range of sample holders
Intelligent Scanning Technology™ (US Patent 7,330,307)

Maximum Travel Range	114 mm x 75 mm
Minimum Step Size	0.01 µm
XY Repeatability	0.7 µm
Load Capacity	10 kg
Stepper Motor	2 phase bipolar, 1 amp per phase micro stepping
Linear Slides	3 mm precision bearings
Drive Screws	Zero backlash, recirculating ball screws; 2 mm pitch

Specifications as per datasheet. Please see datasheet for details.

H230 Aluminum plate.
H220 Glass plate (not suitable for transmitted light microscopy).
H473UP Universal specimen holder (slides, Petri dishes and small flasks) for stereo microscopes
H649 Holder for a single 1 in, 1.25 in and 1.5 in mounted metallurgical specimen
H224LP Low profile slide holder for one 76x26 mm microscope slide.
