HZ106KT1E

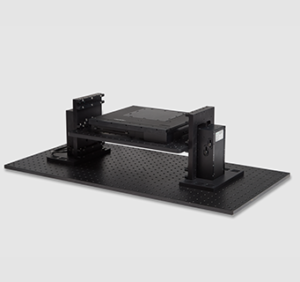

Encoded High Precision Motorized XYZ Deck

Prior Scientific’s HZ106KT1E is the ideal platform for multiphoton and confocal microscopy and live animal research applications.

Prior's encoded flat top H101E1F stage is incorporated into the HZ106KT1E for precise, accurate XY positioning. Its linear encoders enhance repeatability for long-term or multipoint time-lapse experiments or for scanning large areas

HZ106KT1E is a robust, versatile platform suitable for slides and dishes or whole animal studies. The height is adjustable from 87 mm to 391 mm, with motorized  XY travel of up to 50 mm, and a load capacity of 10 kg to allow for live animal apparatus.

The 25kg lifting capacity of the Z-axis enables more complex experimental set-ups, not requiring XY translation, to be used with the HZ106KT1E.

Available in the US: for other regions, please contact us. Mounting breadboard not included.


    • Sample height adjustable from 87 mm to 391 mm
    • 50 mm of motorized Z travel
    • Up to 25 kg Z axis lifting capacity
    • 100 nm linear encoders for enhanced XY repeatability.
    • Intelligent Scanning Technology™ (U.S. Patent 7,330,307).
Uni-Directional Repeatability ± 0.7 (0.2) µm
Resolution 20 nm
Recommended Speed 20 (50) mm/s
Metric Accuracy 0.2 µm/mm
XY Travel Range 114 x 75 mm
Z Travel Range 50 mm
Ball Screw Pitch 1 mm
Maximum Load 10 kg

Specifications as per datasheet. Please see datasheet for details.

  • H224F Single slide holder for new flat H101 stage

  • H234F 4 X slide holder for new flat H101 stage

  • H3848 Converter plate to enable H101A sample holders to be fitted. NB as the older plates have different focus heights they may not work on some microscopes.
