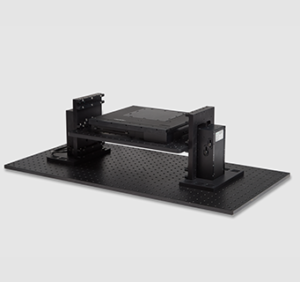

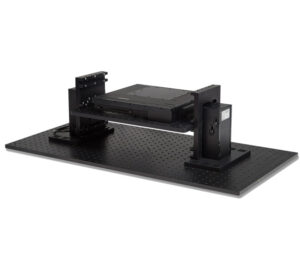

HZ106KT1


High Precision Motorized XYZ Deck

Prior Scientific’s HZ106KT1 is the ideal platform for multiphoton and confocal microscopy and live animal research applications.

Prior's flat top H101N1F stage is incorporated into the HZ106KT1 for precise, accurate XY positioning.

HZ106KT1 is a robust, versatile platform suitable for slides and dishes or whole animal studies. The height is adjustable from 87 mm to 391 mm, with motorized  XY travel of up to 50 mm, and a load capacity of 10 kg to allow for live animal apparatus.

The 25kg lifting capacity of the Z-axis enables more complex experimental set-ups, not requiring XY translation, to be used with the HZ106KT1.

Available in the US: for other regions, please contact us. Mounting breadboard not included.






    • Sample height adjustable from 87 mm to 391 mm
    • 50 mm of motorized Z travel
    • Up to 25 kg Z axis lifting capacity
    • Flat top stage design for easy loading of large samples
    • Intelligent Scanning Technology™ (U.S. Patent 7,330,307).
Uni-Directional Repeatability ± 0.7 (0.2) µm
Resolution 20 nm
Recommended Speed 20 (50) mm/s
Metric Accuracy 0.2 µm/mm
XY Travel Range 114 x 75 mm
Z Travel Range 50 mm
Ball Screw Pitch 1 mm
Maximum Load 10 kg

Specifications as per datasheet. Please see datasheet for details.

  • H224F Single slide holder for new flat H101 stage

  • H234F 4 X slide holder for new flat H101 stage

  • H3848 Converter plate to enable H101A sample holders to be fitted. NB as the older plates have different focus heights they may not work on some microscopes.

Option Manufacturer Compatibility Notes
