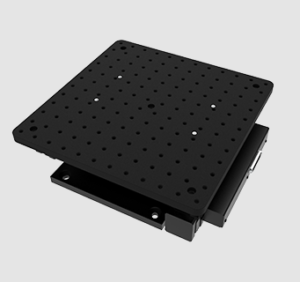

ProScan HT11 Series


Heavy Duty Motorized Stage for Whole Animal and Industrial Imaging

The HT11 Series is ideal for automated XY scanning of larger samples and is underpinned by the technology from Prior's hardness testing stages.

The HT11300KT and HT11600KT have surface areas of 300 x 300 mm and 600 x 600 mm respectively, with both capable of supporting loads of up to 100 kg to enable large and complex equipment to be translated.

This includes both whole animal behavioral electrophysiology apparatus and customized industrial assemblies.

The HT11 Series surfaces feature an M6 tapped breadboard pattern for easy attachment, and can also be fixed directly to M6 or ¼-20 breadboards.

Finally, the stages use Prior’s patented Intelligent Scanning Technology (IST) to optimize stage accuracy, linearity and other performance characteristics.


    • Load capacity of up to 100 kg
    • Intelligent Scanning Technology™ (US Patent 7,330,307)
    • Mounts directly to 1/4-20 and M6 breadboards
    • Heavy duty translation stage with 300 x 300 mm or 600 x 600 mm M6 tapped breadboard top plate.
    • Directly compatible with live animal neuroscience equipment, including the Neurotar Mobile HomeCage Large

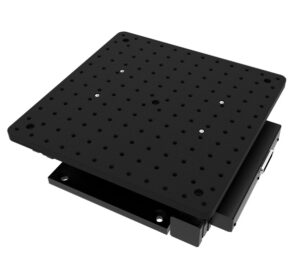

Product Code HT11300KT HT11600KT
Travel range 108 mm x 108 mm 108 mm x 108 mm
Unidirectional repeatability <0.6 μm <0.6 μm
Bidirectional repeatability <2.5 μm <2.5 μm
Metric accuracy 0.16 μm/mm 0.16 μm/mm
Full travel accuracy <16.0 μm <16.0 μm
Resolution 0.02 μm 0.02 μm
Squareness <40 arcsec <40 arcsec
Maximum velocity 30 mm/s 30 mm/s
Maximum load 100 kg 100 kg
Encoders No No
Motor type 400 step 400 step
Screw pitch 2 mm 2 mm
Weight 9.5 kg 15.0 kg
Surface area 300 x 300 mm 600 x 600 mm

Specifications as per datasheet. Please see datasheet for details.
