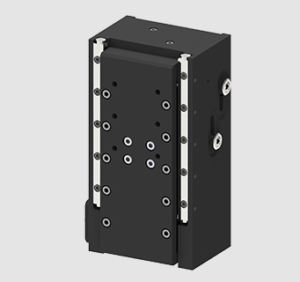

FB210E

Z Axis Encoded Motorized Focusing Mount with Extended Travel Range

The FB210E encoded motorized linear actuator provides precise Z-axis positioning, and is designed for building customized optical systems for OEM manufacturing. The extended 50 mm travel range is suitable for working with large samples or complex experimental equipment.

It features a highly reliable stepper motor with linear encoders for sub-micron accuracy and exceptional long-range repeatability.

The FB210E is compatible with Prior's motorized XY stages and has a load capacity of 14 kg for use with heavy samples or larger stages.

Enquire Now

Data Sheet

Extended travel range for microscopy applications.
High load capacity.
Numerous mounting points.
Sub-micron repeatability, enhanced by integrated linear encoders.

Dimensions (at minimum range)	177 x 155 x 143 mm
Resolution	100 nm
Straightness (over full travel)	± 4.6 µm
Full Travel Repeatability	± 0.3 µm
Full Travel Metric Accuracy	< 6.5 µm
Drive Mechanism
Travel Range	50 mm
Speed Range (max load)	1 - 14 mm/s
Encoder
Max Load	14 kg
Cable Length	1 m
Mounting Method
